AK28 HD Plus 15km Ground Station

Category:
Robotics
SKU:
003
Price:
$2900.00
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description

AK28 HD Plus 15km Ground Station



15km range

Range depends on a number of factors including terrain, weather, battery level, electrical interferences, and more.

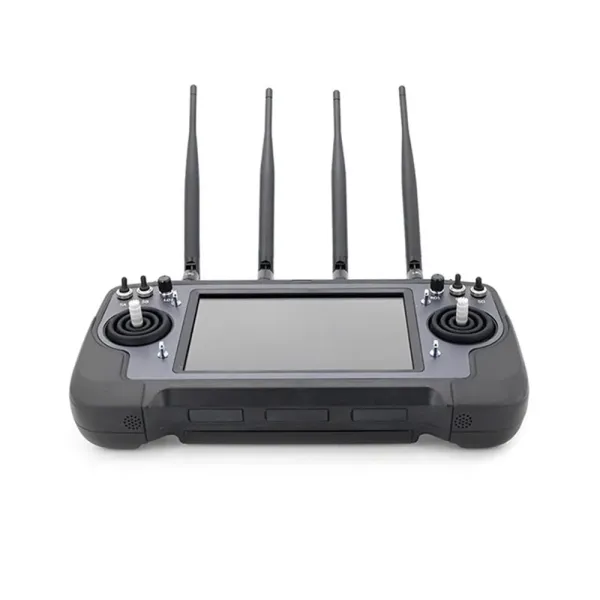

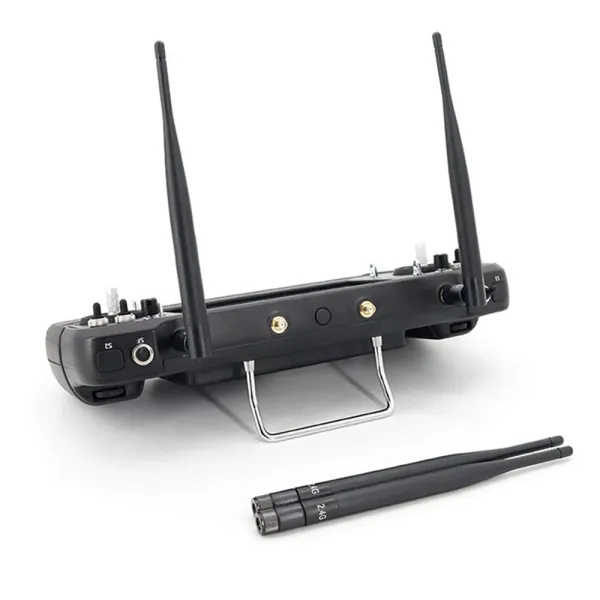

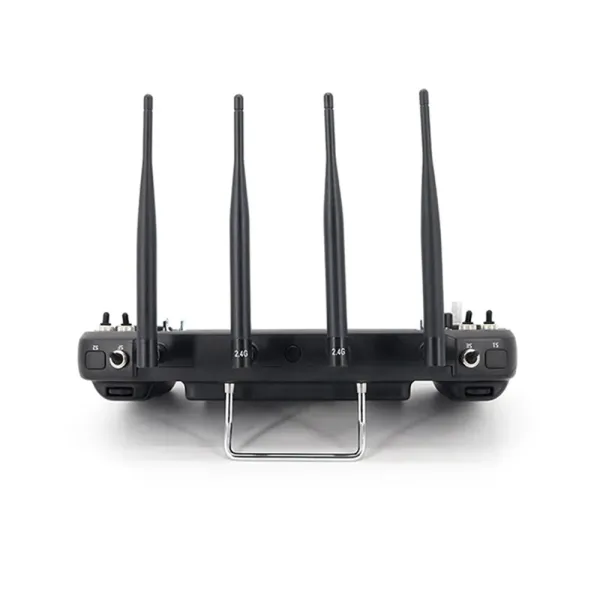

Transmitter

7" display, android OS, 2G RAM + 16G ROM

Dimensions: 308 x 148 x 72mm

Weight: 1330g

Battery: Removable 13000mah lipo 1s 3.7v

Charging: Micro USB 5v/2A

Working time: 3 hours



Reciever

Signal output: 14 S.BUS channels, 5 PWM channels

Video signal input: Network port, HDMI (requires HDMI adapter)

Datalink port: (to FC): UART, CAN

Dimensions without antennas: 61 x 60 x 21mm

Weight without antennas: 82g

Antenna gain: 5 dBi

Working and telementry voltage: 15-50v

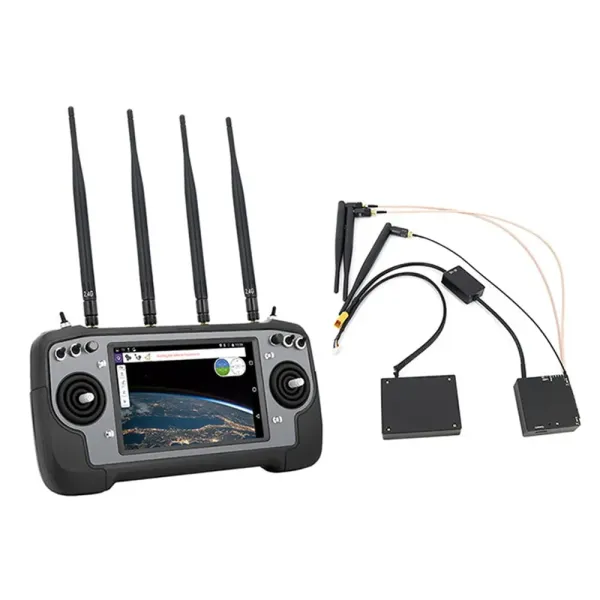

Includes

1 x AK28 HD Plus transmitter

1 x Sky Station reciever

4 x 1.4G antenna

3 x 2.4G antenna

1 x 4-pin data cable

1 x 8-pin videolink cable

1 x Micro USB OTG data cable

1 x Upgrade tool

1 x Strap belt

1 x Storage case

1 x Battery charger
